Plans

Resource Aggregation

This section shows a list of plans which specify the resources to be allocated and get attached to a WorkStation or a Microservice and come as a fourth step In the Spawning Ai- WorkStation Workflow.

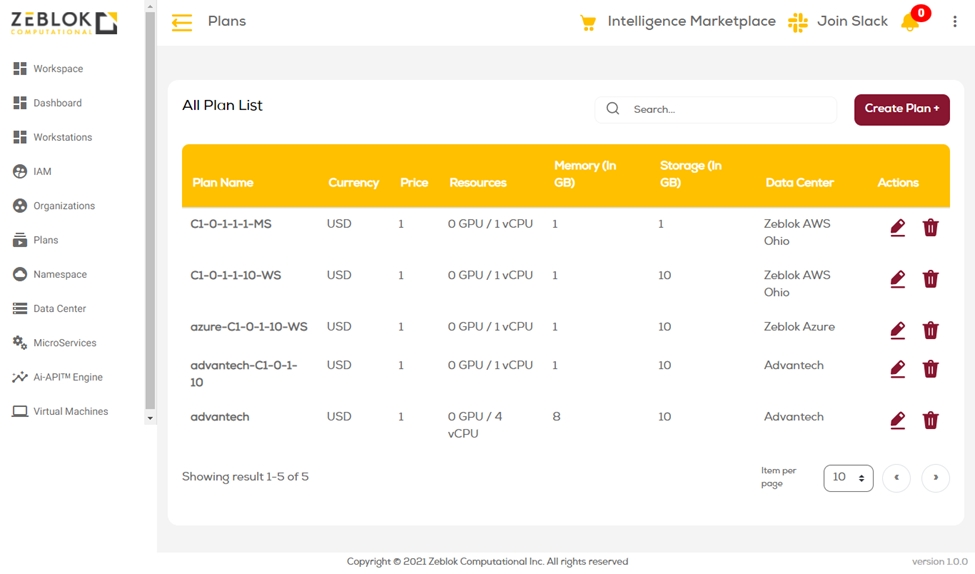

Fig. 1: List of Plans

Create New Plan

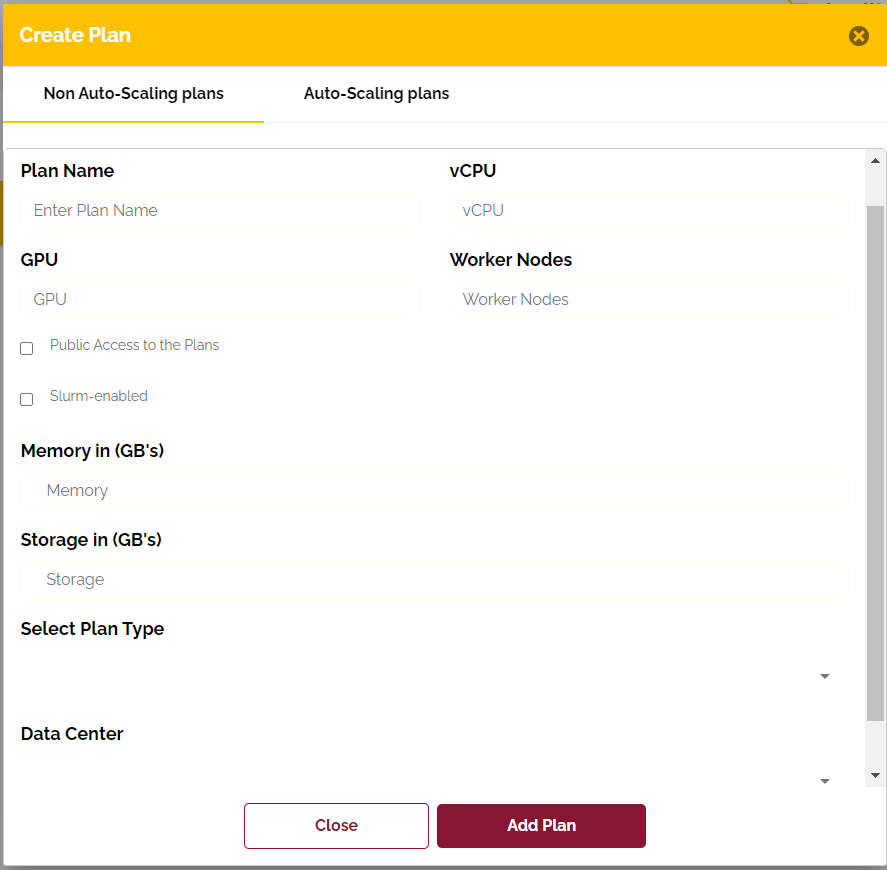

Fig. 2: Create New Plan

The following are the definitions of the fields in the Create New Plan Form:

Name => Name of the plan

vCPU => Number of vCPUs to be allotted by this plan.

GPU => Number of GPUs to be allotted by this plan.

Worker Nodes => Number of worker nodes (Used for High Performance Computing).

Public Access to the Plan => Toggle to make it available to the public or not.

Slurm – enabled => Toggle to make this plan available for HPC (High Performance Computing).

Memory (GBs) => RAM to be made available by this plan.

Storage (GBs) => Storage to be made available by this plan.

Select Plan Type => There are 3 categories available right now:

- Ai- WorkStation

- MicroService

- Ai-API

- Orchestration Add-on

Data Center => Dropdown list of datacenters available in the Ai-MicroCloud where the resources can be allotted by this plan.

Non Auto-scaling and Auto-scaling option on the top of plan creation form are to be only used when "Select Plan Type" drop-down is selected as Orchestration Add-on.
