Onboard Microservices

Standalone containers and interconnected ecosystem of containers

This section shows a list of microservices that have already been brought to the Ai-MicroCloud and are ready to be spawned by the user using the steps mentioned in Spawn a MicroService Guide under our Quick Start Section of the documentation.

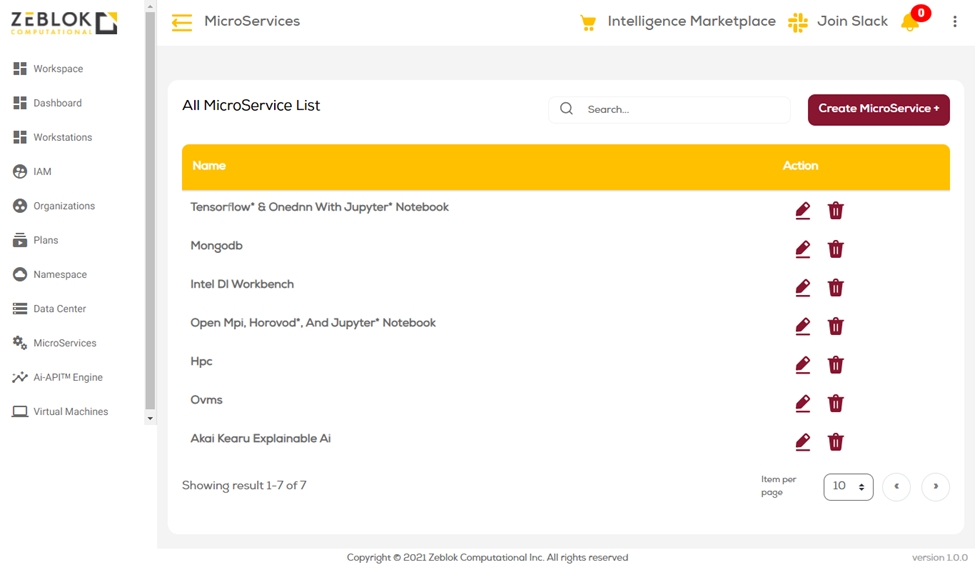

Fig.1: List of MicroServices

Add MicroService

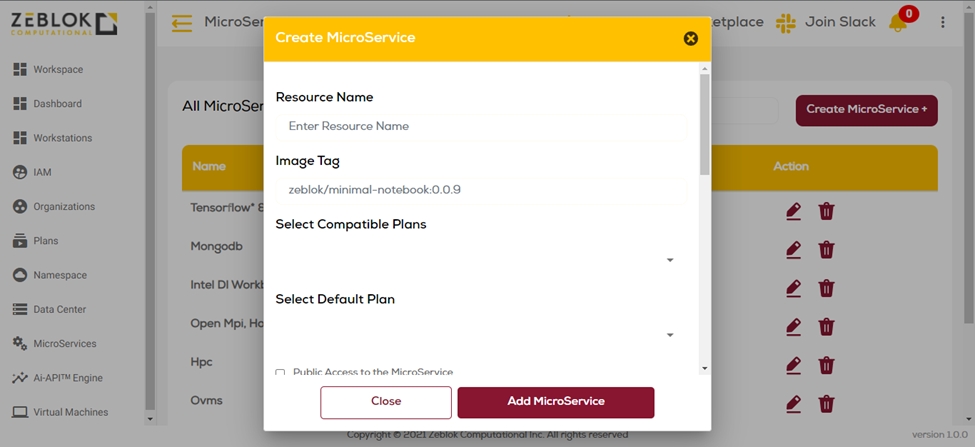

Fig. 2: Add MicroService

The following are the definitions for the fields shown in the Create MicroService form.

Resource Name => The name of the WorkStation you would like to give.

Image Tag => The Image Name along with the tag of the Docker container.

Select Compatible Plan => This is a multi-select dropdown of the available plans, and you have to select the ones suitable for this container.

Select Default Plan => This is a dropdown among all the plans chosen in the previous field to choose one of them as the default plan/ recommendation.

Public Access to MicroService => Disabling it will only let the superadmin view this container for spawning.

Description Box => Provide a suitable description for this WorkStation for the users to understand the capabilities of this microservice.

Internal Ports => List of port numbers with their protocol, which are required for this microservice to work.

Upload Image => Upload an image for this container as a thumbnail.

The tutorial below contains all the detailed steps for onboarding a simple microservice and how to spawn the onboarded microservice into the platform.

3MB

onboarding micro(new).mp4

Open
